BASE VEHICLE
GMC YUKON
CHEVROLET SUBURBAN
CADILLAC ESCALADE
BALLISTIC PROTECTION CLASS
VPAM BRV 2009 VR9
BLAST PROTECTION CLASS
VPAM ERV2010

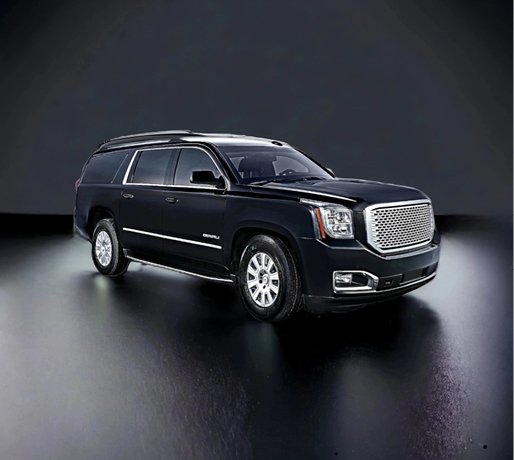

ARMOURED GMC
The GMC offers a spacious and upscale interior without compromising on its off-road capabilities, as it is also suitable for extremely difficult terrain. The vehicle can be individually configured, making it suitable for use in applications as diverse as a tactical emergency vehicle or even a luxury VIP car.
This armoured vehicle can be based on a GMC Yukon, Cadillac Escalade or Chevrolet Suburban, since all of these models have the same bodywork.
The armoured GMC has been certified by the “Beschussamt Mellrichstadt” according to the current VPAM guidelines BRV2009 and ERV2010.
ARMOURED CAPSULE
BALLISTIC SPECIFICATION
Ballistic protection class
Calibre
Type
Mass (g)
Manufacturer / Model
Distance (m)
Pace (m/s)
VPAM BRV 2009 VR9
.308 Win (7.62 x 51)
FMJ/PB/HC
9,55 ± 0,2
MEN/CBC FNB 80
10 + 0.5
820 ± 10
BLASTING SPECIFICATION
Protection class VPAM ERV2010 / STANAG 4569
Our armored vehicles are certified, among others, in compliance with VPAM ERV2010 and STANAG 4569. The testing procedures include the blasting of differ- ent types of hand grenades (DM51, HG85) on the vehicle roof and under the vehi- cle. In compliance with STANAG 4569 AEP-55 we also test protection against land mines of type AP DM31 and similar, and against 6-kg land mines. On request, we simulate the effects of a TNT or PETN car bomb blasting on the lateral sides of a vehicle. All tests are performed by state-approved proof houses (Beschussamt) or IABG, a German analysis and testing company.
TECHNICAL SPECIFICATIONS
• 6.200 – 5300
• 8 cylinders
• 420 – 380 HP
• Petrol
• Capacity 98 L
• LHD/RHD
• 4 – 9
• 10 Gears Automatic
• 2×2 / 4×4
• 6500 kg
• Load capacity
Up to 1,000 kg
EQUIPMENT FEATURES
Our bullet-proof vehicles are equipped as standard with safety equipment that provides passenger
protection in dangerous situations. This comprises the following components:
- 360° overlap system on all doors and windows
- Hand-grenade protection (ERV2010) on the vehicle roof
- Hand-grenade protection (ERV2010) underneath
- Side blast protection against 15 kg TNT (ERV2010) IED
- Aluminium rims with emergency running system
- Armoured electronic control unit
- Armoured main battery
- Intercom
- Exhaust cover
- Reinforced door hinges
- Reinforced chassis and brake components
- Industrial coating of all armoured components
CHASSIS/SUSPENSION AND BRAKES
The armoured GMC features specially developed chassis and suspension components that have been adapted by our experts to handle the increased vehicle weight. The optimised elements include the shock absorbers, springs, stabilisers, brake pads, brake discs, brake callipers and brake lines. Thanks to the optimum adjustment of the axle load, this car offers safe and reliable handling even during extreme manoeuvres under full load conditions.
GALLERY
ADDITIONAL OPTIONS
• Battery armour for main and/or additional battery
• Radiator armour incl. additional fan
• Tank armour for main and/or additional tank
• Shatter protection on the floor; DM 31
• Tank explosion protection
• Windscreen; heated
• Cargo area windows; armoured
• Electric windows; driver/passenger side
• Gel battery as replacement for main and/or additional battery
• Main battery switch
• Fog lights
• Rear fog light
• Parking assistance (front/rear)
• Navigation system
• Parking heater
• Parking ventilation; battery operated
• Strobe lights
• 360° search lights incl. remote control; roof installation
• Intercom; PA system & siren
• Geolocation system; tracking
• Satellite telephone
• GSM antenna
• HF / VHF / UHF radio or antenna equipment
• LED light strip (130 or 180 watts)
• Auxiliary LED rear light (white)
• Rear light shut-off
• MagCode socket (roof)
• Winch; 9,500 lbs or 12,000 lbs or 15,000 lbs
• Fuel cooling
• Tyre pressure system
• Camera surveillance system in and around the vehicle (display on the monitor)
• EDoor locking; manual
• Fire extinguishing system; engine compartment, underbody, wheelhouse
• Fire extinguisher; 2 and 3 kg respectively; incl. bracket in boot
• Emergency roof exit
• Fire extinguisher cartridge in engine compartment
• Equipment mountings
• Additional interior mirror (for passengers)
• Special crowbar
• Sand plates
• Tool rack (tool brackets)
• Heavy duty rack
• Rescue kit (shackle, pulleys, recovery belt)
• Window tinting from A-pillar/B-pillar
• Differential lock; (front/rear)
• Braking system; PREMIUM 6 pistons (front)
• Reinforced clutch; for manual gearboxes only
• Filter set (fuel filter + spare cartridge for water separator)
• Tank volume extension
• Bumper; front, reinforced (steel), incl. LED fog lights
• Bumper; rear, reinforced (steel)
• Bumper; front/rear, reinforced (concealed)
• Stone chip protection for front and/or rear
• Roof rack
• Pennant holder
• Bracket for spare wheel; interior or roof rack
• Spare NATO canister or plastic canister
Further security and safety equipment available on request.
POTENTIAL USES
ARMOURED SECRET SERVICE VEHICLE
The large amount of available space makes the SUV very popular with the American Secret Service and the units protecting the US President. In fact, up to nine people can be trans- ported comfortably thanks to the third bank of seats.
ARMOURED PATROL VEHICLE
The armoured GMC based on the GMC Yukon, Cadillac Escalade or Chevrolet Suburban can be equipped with diverse radio and intercom systems for use as a patrol vehicle.
