BASE VEHICLE
TOYOTA LAND CRUISER 300
BALLISTIC PROTECTION CLASS
VPAM BRV EDITION 3 VR7 & VPAM BRV EDITION 3 VR9
BLAST PROTECTION CLASS
VPAM ERV EDITION 3
& STANAG 4569 AEP-55 VOL. 3

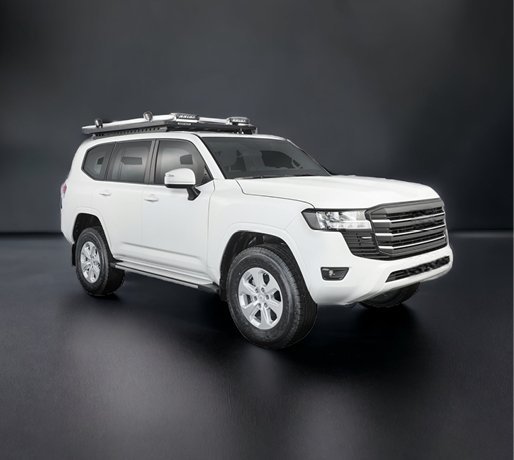

ARMOURED TLC 300
Our TLC special protection vehicle is the preferred choice of governments, embassies, aid organisations and special operations teams worldwide. Visually identical to a standard Toyota Land Cruiser, the armoured vehicle offers a superior level of ballistic protection. Needless to say, it is certified by the German (firearms) proof house in accordance with current VPAM (*Association of test laboratories for bullet-resistant materials and constructions) guidelines, BRV Edition 3 and ERV Edition 3. The TLC is based on the Toyota Land Cruiser 300. The vehicle is available in VR7 and VR9 protection classe
ARMOURED CAPSULE
BALLISTIC SPECIFICATION
Ballistic protection class
Calibre
Type
Mass (g)
Manufacturer / Model
Distance (m)
Pace (m/s)
VPAM BRV 2009 VR7
.308 Win (7.62 x 51)
FMJ*/PB/SC
9,55 ± 0,1
MEN DM 111
10 + 0.5
830 ± 10
VPAM BRV 2009 VR9
.308 Win (7.62 x 51)
FMJ/PB/HC
9,55 ± 0,2
MEN/CBC FNB 80
10 + 0.5
820 ± 10
BALLISTIC SPECIFICATION
OPTION A
Ballistic protection class
Calibre
Type
Mass (g)
Manufacturer / Model
Distance (m)
Pace (m/s)
VPAM BRV 2009 VR7
.308 Win (7.62 x 51)
FMJ*/PB/SC
9,55 ± 0,1
MEN DM 111
10 + 0.5
830 ± 10
OPTION B
Ballistic protection class
Calibre
Type
Mass (g)
Manufacturer / Model
Distance (m)
Pace (m/s)
VPAM BRV 2009 VR9
.308 Win (7.62 x 51)
FMJ/PB/HC
9,55 ± 0,2
MEN/CBC FNB 80
10 + 0.5
820 ± 10
BLASTING SPECIFICATION
Protection class VPAM ERV Edition 3 / STANAG 4569 AEP-55 Vol. 3
Our armored vehicles are certified, among others, in compliance with VPAM ERV Edition 3 and STANAG 4569 AEP-55 Vol. 3. The testing procedures include the blasting of different types of hand grenades (DM51, HG85) on the vehicle roof and under the vehicle. In compliance with STANAG 4569 AEP-55 Vol. 3 we also test protection against land mines of type AP DM31 and similar, and against 6-kg land mines. On request, we simulate the effects of a TNT or PETN car bomb blasting on the lateral sides of a vehicle. All tests are performed by state-approved proof houses (Beschussamt) or IABG, a German analysis and testing company.
TECHNICAL SPECIFICATIONS
• 3.346 – 3.445
• 6 cylinders
• 302 – 414 HP
• Diesel
• Petrol
• LHD/RHD
• 5 – 7
• 10 Gears Automatic
• 4×4
• On Demand
• Load capacity
Up to 1,000 kg
EQUIPMENT FEATURES
Our bullet-proof vehicles are equipped as standard with safety equipment that provides passenger
protection in dangerous situations. This comprises the following components:
- 360° overlap system on all doors and windows
- Hand-grenade protection (ERV2010) on the vehicle roof
- Hand-grenade protection (ERV2010) underneath
- Side blast protection against 15 kg TNT (ERV2010) IED
- Aluminium rims with emergency running system
- Armoured electronic control unit
- Armoured main battery
- Intercom
- Exhaust cover
- Reinforced door hinges
- Reinforced chassis and brake components
- Industrial coating of all armoured components
CHASSIS/SUSPENSION AND BRAKES
To ensure that a special protection vehicle offers reliable safety even in extreme situations, the person driving it must be able to control
it effectively. We therefore specially adapt the chassis of the TLC to the increased vehicle weight: Our engineers have completely redesigned the chassis to meet the increased load of an armoured vehicle. Reinforced springs and shock absorbers contribute to increased driving safety and comfort, and the brake components have been replaced by higher performance alternatives.
GALLERY
ADDITIONAL OPTIONS
• Battery armour for main and/or additional battery
• Radiator armour incl. additional fan
• Tank armour for main and/or additional tank
• Shatter protection on the floor; DM 31
• Tank explosion protection
• Windscreen; heated
• Cargo area windows; armoured
• Electric windows; driver/passenger side
• Gel battery as replacement for main and/or additional battery
• Main battery switch
• Fog lights
• Rear fog light
• Parking assistance (front/rear)
• Navigation system
• Parking heater
• Parking ventilation; battery operated
• Strobe lights
• 360° search lights incl. remote control; roof installation
• Intercom; PA system & siren
• Geolocation system; tracking
• Satellite telephone
• GSM antenna
• HF / VHF / UHF radio or antenna equipment
• LED light strip (130 or 180 watts)
• Auxiliary LED rear light (white)
• Rear light shut-off
• MagCode socket (roof)
• Winch; 9,500 lbs or 12,000 lbs or 15,000 lbs
• Fuel cooling
• Tyre pressure system
• Camera surveillance system in and around the vehicle (display on the monitor)
• EDoor locking; manual
• Fire extinguishing system; engine compartment, underbody, wheelhouse
• Fire extinguisher; 2 and 3 kg respectively; incl. bracket in boot
• Emergency roof exit
• Fire extinguisher cartridge in engine compartment
• Equipment mountings
• Additional interior mirror (for passengers)
• Special crowbar
• Sand plates
• Tool rack (tool brackets)
• Heavy duty rack
• Rescue kit (shackle, pulleys, recovery belt)
• Window tinting from A-pillar/B-pillar
• Differential lock; (front/rear)
• Braking system; PREMIUM 6 pistons (front)
• Reinforced clutch; for manual gearboxes only
• Filter set (fuel filter + spare cartridge for water separator)
• Tank volume extension
• Bumper; front, reinforced (steel), incl. LED fog lights
• Bumper; rear, reinforced (steel)
• Bumper; front/rear, reinforced (concealed)
• Stone chip protection for front and/or rear
• Roof rack
• Pennant holder
• Bracket for spare wheel; interior or roof rack
• Spare NATO canister or plastic canister
Further security and safety equipment available on request.
POTENTIAL USES
ARMOURED MISSION VEHICLE / UN ARMOURED VEHICLE
We offer numerous additional optional extras for the TLC. As a result, this special protection vehicle can be customised for different missions and operations. The TLC is used,
for example, by aid organisations worldwide.
ARMOURED POLICE VEHICLE / TACTICAL VEHICLE
The TLC can be specially outfitted for tactical, defensive and reconnaissance missions. Optional extras include gun ports, emergency exits, defensive shields and tactical lighting systems.
ARMOURED RESCUE VEHICLE / EMERGENCY VEHICLE / AMBULANCE
The TLC can be specially outfitted for tactical, defensive and reconnaissance missions. Optional extras include gun ports, emergency exits, defensive shields and tactical lighting systems.
